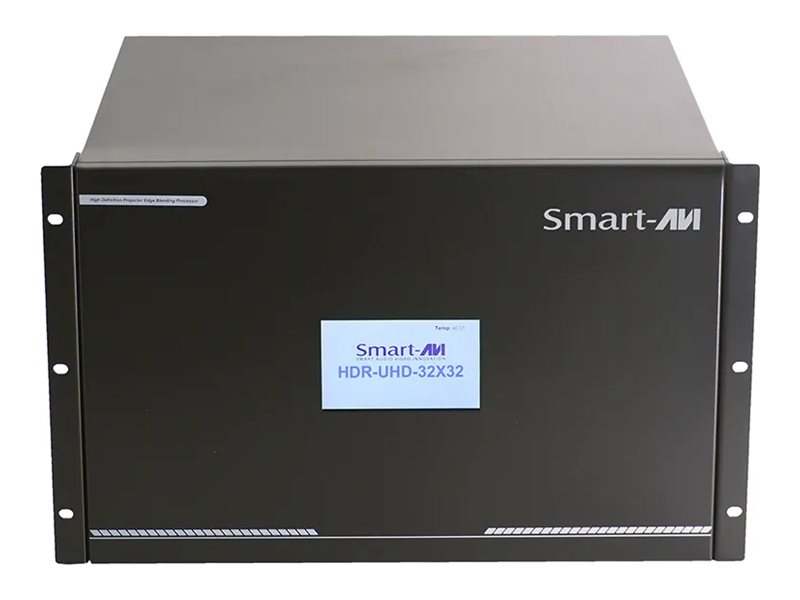

32x32 matrix switcher - TAA Compliant
SmartAVI
HDR-UHD-32X32-S
0657477034238
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | SmartAVI 32x32 matrix switcher - TAA Compliant |
| Type | 32x32 matrix switcher |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 17 in - 15 in - 7.1 in |
| Weight | 24.47 lbs |
| Manufacturer Warranty | 1 year |
| General | |
| Type | 32x32 matrix switcher |
| Width | 17 in |
| Depth | 15 in |
| Height | 7.1 in |
| Weight | 24.47 lbs |
| Manufacturer Warranty | |
| Warranty | 1 year |
| Miscellaneous | |
| TAA Compliant | Yes |
| Power | |
| Voltage Required | AC 110-240 V |
| Frequency | 50/60 Hz |
| Power Consumption | 100 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% |
| Terminals | |
| Terminals | (32) x HDMI input - 19 pin HDMI Type A ¦ (32) x HDMI output - 19 pin HDMI Type A ¦ (32) x audio line-out - mini-phone 3.5 mm ¦ (2) x serial - 9 pin D-Sub (DB-9) - RS-232 ¦ (1) x network - RJ-45 |
| Studio & Production Equipment | |
| Features | 4K60 signal support, HDCP 2.2 compliant |
